Airflex DUO

2 Cell-Cycle Alternating Pressure Mattress Replacement System

The AirFlex® DUO is a high quality, cost effective 2 cell-cycle alternating pressure mattress designed to prevent pressure injuries in patients who are at high risk of their development. AirFlex® DUO is recommended for nursing patients with limited mobility who require occasional repositioning and will also accelerate the healing of existing stage 1 and 2 pressure ulcers.

AirFlex® DUO is a large cell, dynamic mattress that provides the rapid changes in airflow required to stimulate reactive hyperaemia in the deep tissues surrounding the bony prominences. The mattress has in-built pressure sensors which automatically adjust to patient’s weight and changes in body position. Advanced engineering and a quality compressor have created a dynamic support surface that is therapeutic for patients weighing from 20 to 220 kg.

Patient Safety and Comfort

  • 2 cell-cycle with a 10 minute cycle time provides regular relief of interface pressure

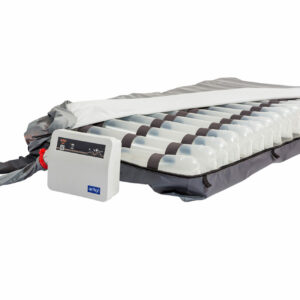

  • Cell-in-cell technology improves patient comfort and safety by providing a permanently inflated base portion beneath the active alternating component of the air-cell
  • Dual pressure settings improve comfort for frail and underweight patients without compromising pressure relief
  • Fully automatic adjustment to patient weight and body position
  • Dual comfort settings available within both static and dynamic modes to suit individual patient comfort or clinical requirements

Additional nursing support

  • Audible and visual alarms provide peace of mind for nursing staff
  • Rapid deflation on release of CPR connector
  • Static mode provides a firm and stable surface for essential nursing procedures such as physiotherapy, wound dressing and changing bed linen
  • Static mode defaults to Alternating mode after 30 minutes
  • Transport mode ensures the mattress remains inflated for 8 hours in the event of a mains power failure
  • Cable management system ensures power cable can be safely and securely retained off the floor
  • V-Lock system prevents accidental disconnection of the power cord

Maximises Infection Control

  • Waterproof, vapour permeable, Dartex® covers provide microclimate control at the skin/mattress interface
  • Soft, smooth covers reduce shear and friction as well as allowing easy wipe down when cleaning
  • Welded seams prevent the ingress of fluids into the mattress
  • 360° zip ensures cover can be easily removed for infection control and high temperature laundering
  • Generous waterfall flap protects zip and integrity of the air-cells

Available Sizes:
Single – 1880 x 880 x 200 mm (standard)/ Max Patient Weight 220kg

Number of cells18
Mattress material CategoryCells: Polyurethane
Cover: Two-way stretch Polyurethane coated Nylon
ClassificationClass B Medical Device / Class II
Mattress – flammability ratingComplies with BS7175 ignition source 0, 1 and 5
Power unit – flammability rating / ingress protectionUL 94 V-0 / IP 42
Power supply / power consumption:230 V~ ±10%, 50 / 60 Hz 20 W max
Mattress sizes1880 x 880 x 200 mm (standard)
1880 x 800 x 200 mm (narrow)
Max. patient weight220 kg
Pump unit dimensions400 x 160 x 250 mm
Mattress weight9.2 kg
Pump weight2.8 kg

Airflex DUO PDF

+ -
